Key Takeaways

Product Feature	Operational Benefit
Foot-operated activation	Starts water flow without using either hand
Valve opens in one second or less	Delivers rapid emergency decontamination
Minimum 75.7 litres per minute	Supports a continuous 15-minute full-body flush
Polypropylene construction	Provides resistance to a wide range of acids and corrosive chemicals
Hand-operated eyewash bowl	Combines body and eye irrigation in one compact footprint

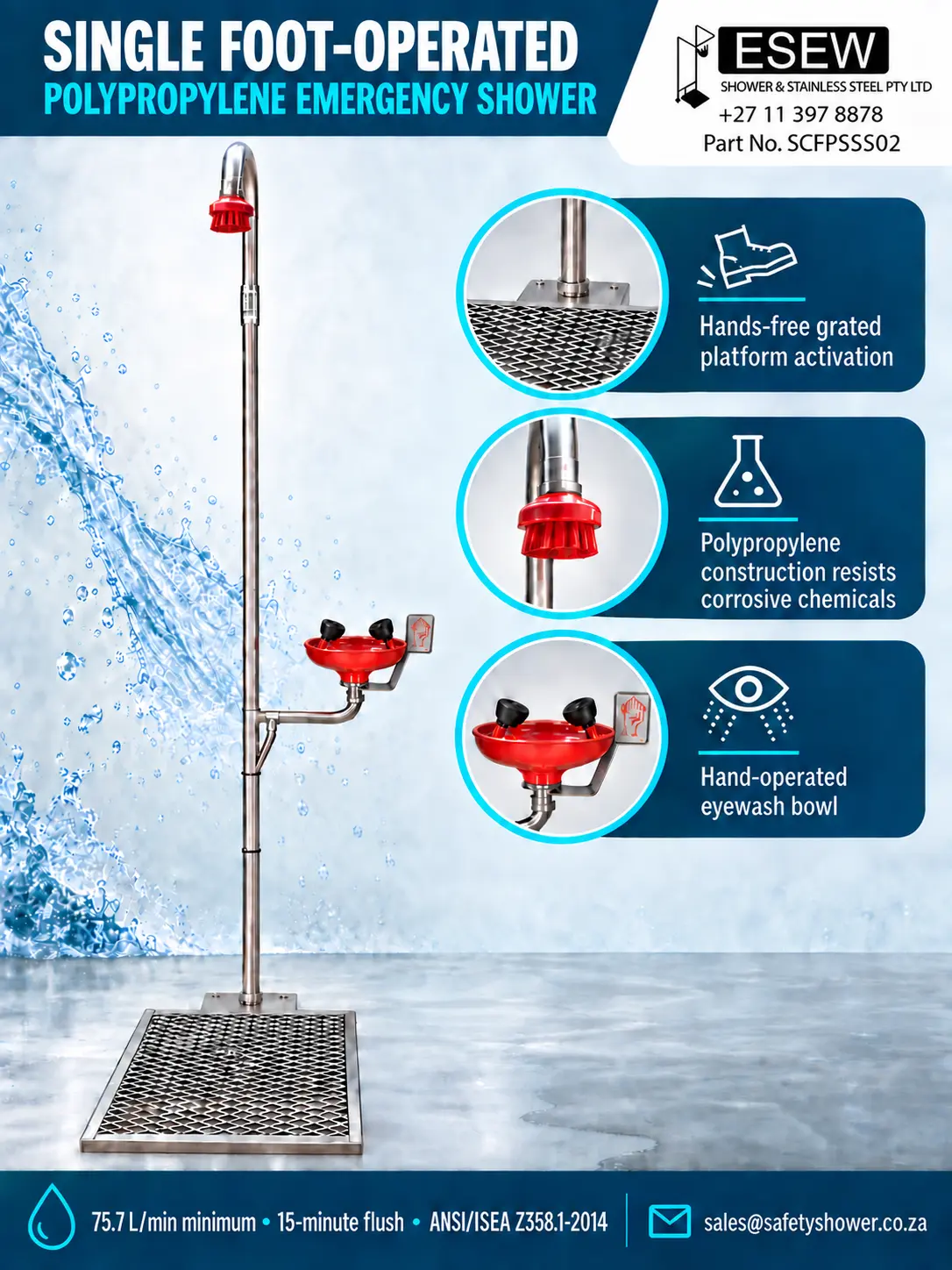

What Is a Single Foot-Operated Polypropylene Emergency Shower?

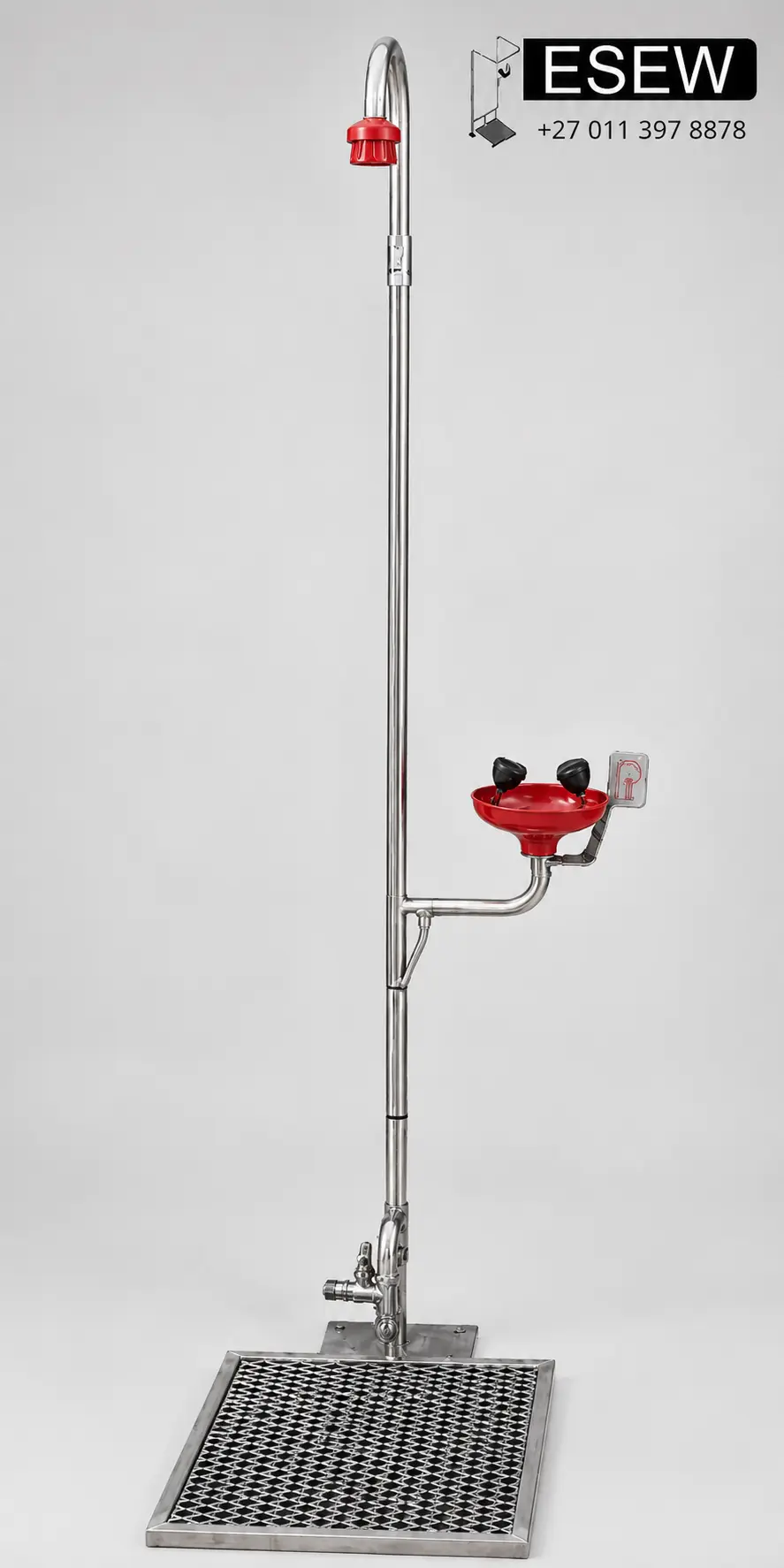

This freestanding unit is a foot operated shower with hand operated eyewash bowl. Stepping onto the grated operating platform mechanically opens the shower valve and keeps it open during treatment, while the eyewash bowl is activated by hand for controlled eye irrigation. Polypropylene components suit sites where chemical resistance and a lightweight, durable finish are important.

The high-volume shower and hand-operated eyewash bowl connect to the same water supply. Correct placement keeps the equipment visible, unobstructed and reachable within ten seconds of the identified hazard.

Core Design Features of Emergency Showers

• Hands-free foot activation for rapid emergency use.
• Stay-open valve that does not require continuous pressure.
• Compact single-column footprint for narrow work areas.
• Hand-operated eyewash bowl for controlled eye irrigation alongside body decontamination.
• Configuration designed around ANSI/ISEA Z358.1-2014 performance requirements.

How the Single Foot Polypropylene Emergency Shower Works

The column carries a single water riser from the supply line to the shower head, with a branch line feeding the hand-operated eyewash bowl. A worker triggers the flow by stepping onto the foot-operated base, which opens the valve mechanically, and the valve stays open on its own so the worker does not need to keep a foot on the base or a hand on any trigger once flow has started. Water flow is set to meet the volume and pressure figures required for full-body decontamination.

Placement matters as much as the mechanism. The unit needs to sit within a clear, unobstructed 10-second walk of the hazard, on the same floor level, with nothing blocking the path in an emergency.

Emergency Shower Activation Sequence

What Happens During an Emergency Shower Flush Cycle

• The valve locks open as soon as the worker steps onto the foot-operated base, so both hands stay free for removing clothing or assisting a colleague.
• Water temperature should sit between 15°C and 38°C, tepid enough to prevent thermal shock during a prolonged 15-minute flush.
• The hand-operated eyewash bowl draws from the same supply, letting one worker treat eyes and body without moving to a second station.

Compliance and Performance Standards for the Single Foot Polypropylene Emergency Shower

ESEW builds its single foot polypropylene emergency showers to meet ANSI/ISEA Z358.1-2014, the benchmark referenced by OSHA under 29 CFR 1910.151(c) and, for construction sites, 29 CFR 1926.50(g). South African buyers use the same performance figures alongside SANS and EU compliance references when specifying equipment for chemical, mining, or pharmaceutical facilities.

These figures are not arbitrary. Flow rate, activation speed and water temperature are each tied to how quickly and thoroughly a chemical or corrosive substance can be diluted off skin and out of eyes before permanent damage sets in.

Emergency Shower Performance Figures That Matter

• Flow rate must reach a minimum of 20 gallons (75.7 litres) per minute, sustained continuously for at least 15 minutes without dropping off.
• Valve activation must occur in one second or less and remain open hands-free once triggered by the foot-operated base.
• Water temperature must stay tepid, between 15°C and 38°C, to avoid adding thermal injury to a chemical exposure.
• The unit must sit within a 10-second, obstruction-free walk from the hazard, roughly 23 metres, on the same floor level.

Single Column vs Double Column Emergency Showers

Choosing between a single column and a double column configuration usually comes down to floor space, user volume, and whether eye irrigation needs its own dedicated fixture.

Feature	Single Column Shower	Double Column Shower
Footprint	Compact, one structural pole	Wider, two poles or a frame
Eyewash bowl	Hand-operated, integrated on same column	Usually a separate fixed bowl unit
Best suited for	Tight walkways, single-user stations	Higher-traffic zones, dual access
Materials available	Durable polypropylene (this model); stainless or mild steel also available on other columns	304, 316 stainless or mild steel
Compliance standard	ANSI/ISEA Z358.1-2014	ANSI/ISEA Z358.1-2014

Where Single Column Emergency Showers Are Installed Across South Africa

Facilities across South Africa install single foot polypropylene emergency showers wherever workers handle corrosive acids, solvents or toxic chemicals as part of daily operations. ESEW supplies units into chemical plants, laboratories, pharmaceutical manufacturing, food and beverage processing, mining operations, and oil and gas sites, matching the column material to the site's chemical exposure and climate.

Waste and water management facilities, along with general manufacturing plants, also specify these units on process lines where a full frame shower would take up more room than the layout allows.

Typical Emergency Shower Installation Points

• Laboratory benches and fume hood exits, where a compact column fits between fixed cabinetry without blocking aisles.
• Chemical mixing and dosing stations, positioned within the mandated 10-second travel distance from the hazard point.
• Loading bays and tanker offload points, where corrosive or hazardous liquids are transferred and splash risk is highest.

Frequently Asked Questions

Does a single foot polypropylene emergency shower need to include an eyewash bowl?
Part No. SCFPSSS02 includes a hand-operated eyewash bowl with the high-volume foot-operated shower. The shower provides full-body decontamination, while the bowl supplies controlled eye irrigation from the same water connection.

What is the minimum flow rate required for a single foot polypropylene emergency shower?
The unit must deliver at least 20 gallons, or 75.7 litres, of water per minute. This flow rate needs to hold steady for a continuous 15-minute flush, matching the requirement set out in ANSI/ISEA Z358.1-2014.

How close does a single foot polypropylene shower need to be to the hazard area?
It must sit within 10 seconds of unobstructed travel time from the hazard, roughly 23 metres, on the same floor level with a clear path. Anything blocking that path, such as stored equipment or locked doors, takes the installation out of compliance.

What material is the single foot polypropylene shower made from?
This model is built from durable polypropylene, chosen for its resistance to a wide range of acids and corrosive chemicals. ESEW also offers columns in 304 stainless steel, 316 stainless steel, or mild steel across its wider range, for sites that prefer a metal frame.

How long is the warranty on a single foot polypropylene shower valve?
All shower valves supplied by ESEW Shower & Stainless Steel carry a 6-month warranty. Contact the sales team for details on servicing and replacement parts beyond that period.
